After setting up ComfyStream and running your first workflow, you can use OBS Studio to capture and broadcast your AI-enhanced streams to your favourite platforms — whether it’s YouTube, Twitch, or distributed infrastructure providers like Livepeer.

​
Prerequisites

Download and install OBS Studio for your operating system. OBS (Open Broadcaster Software) is a free and open-source software for video recording and live streaming.
Before streaming with OBS, you need to have a running ComfyStream workflow. If you haven’t done this yet, follow the run your first workflow guide first.

​
Setting Up OBS with ComfyStream

1

Access the full-screen stream

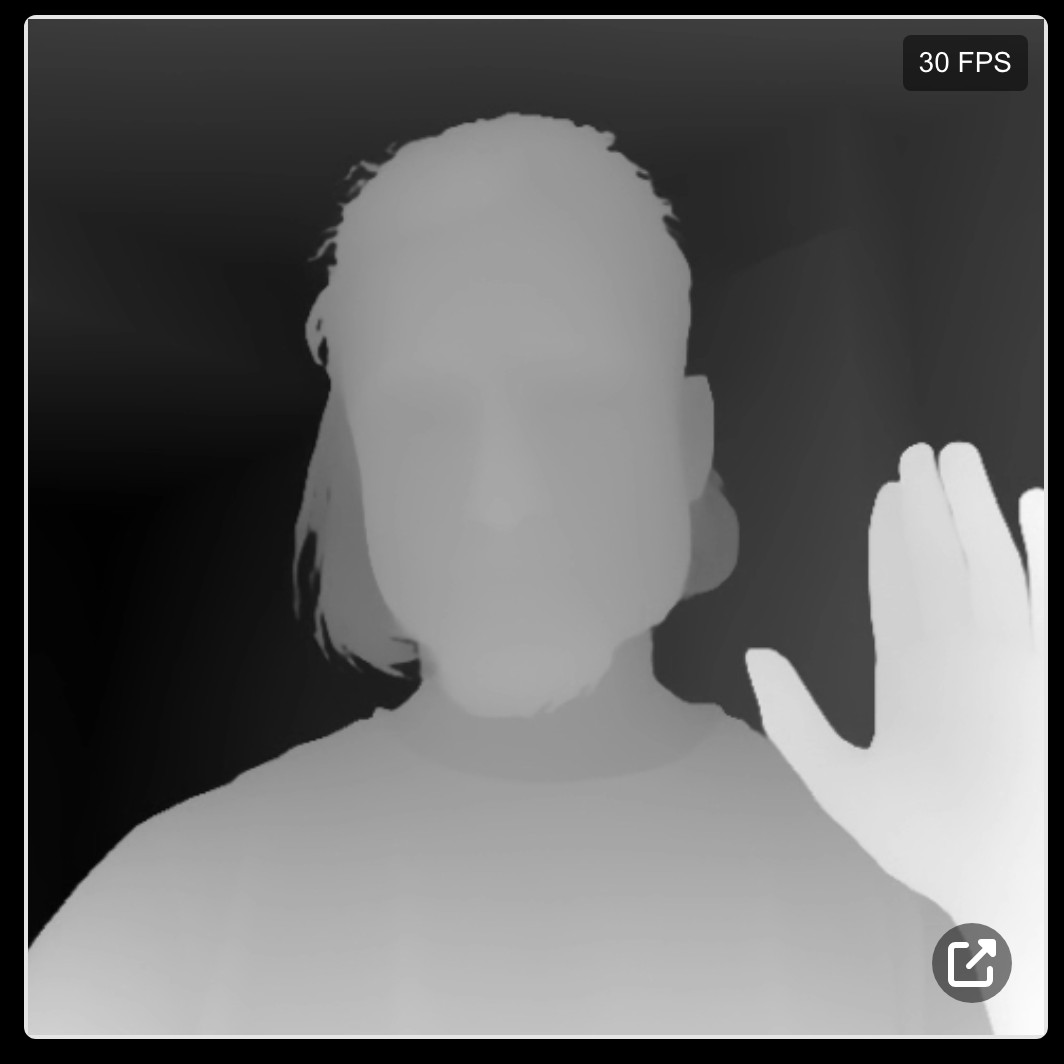

Click the icon in the bottom right corner of the ComfyStream video output to open the stream in a new fullscreen browser tab.

Once your stream is live, you'll see a small icon in the bottom right corner of the video output window.

This dedicated view provides a clean video source without any UI elements, perfect for capturing in OBS.
2

Copy the stream URL

Copy the URL from the new browser tab. You’ll need this to add the stream as a source in OBS.
3

Add browser source in OBS

  1. Open OBS Studio.
  2. In the Sources panel, click the + button.
  3. Select Browser from the list of source types.
  4. Name your source (e.g., “ComfyStream Output”) and click OK.
  5. Paste the URL you copied from the ComfyStream fullscreen tab into the URL field.
  6. Set the Width and Height fields to 1024 to match the resolution of the ComfyStream video.
  7. Click OK to confirm and add the browser source.
You may need to adjust other browser source settings depending on your specific requirements and system performance.
4

Position and scale the source

Once added, you can resize and position the ComfyStream browser source within your OBS scene as needed.You can also add additional sources like webcams, images, or text overlays to enhance your stream.

​
Streaming to Platforms

Use the same OBS setup to stream to platforms like:
  • YouTube Live
  • Twitch
  • Facebook Live
  • Custom RTMP servers.
Each platform provides a unique stream key and RTMP URL. Configure these in OBS Settings → Stream to start broadcasting.
Livepeer is a distributed video streaming network offering cost-effective streaming infrastructure. Follow the Livepeer Documentation for detailed instructions on how to:
  1. Create a stream on Livepeer Studio.
  2. Configure OBS with your Livepeer Stream Key and RTMP ingest URL.
  3. Start broadcasting your ComfyStream AI-enhanced video.

​
Troubleshooting

If you experience performance issues, try reducing the resolution or frame rate in both ComfyStream and OBS settings. Browser sources can be resource-intensive, especially with AI-generated content.
