Super Resolution

Introduction

The Super Resolution node upscales video frames with pre-trained models. The process leverages GPU acceleration through OpenCV compiled with CUDA support, ensuring exceptional speed ideal for real-time applications. When using workflows with base Stable Diffusion models optimized for 512x512, higher resolutions can compromise efficiency and FPS. In these scenarios, a dedicated super-resolution node allows upscaling without significantly affecting performance or quality.

Setup Method

The node is optimized for high-speed upscaling and requires OpenCV with CUDA support. By running ComfyStream with the Docker setup, you get a precompiled package from ComfyUI-Stream-Pack/releases included in the Docker image. This eliminates the need for manual compilation.

If you prefer to install OpenCV with CUDA support manually, follow the guide in article Installing OpenCV with CUDA Support.This guides you through the multiple steps and prerequisites needed to successfully compile OpenCV package.

You can use the following code block as a reference, modify the paths and variables to match your system.

# Clone OpenCV repositories
git clone --depth 1 --branch 4.11.0 https://github.com/opencv/opencv.git
git clone --depth 1 --branch 4.11.0 https://github.com/opencv/opencv_contrib.git

# Create build directory
mkdir -p opencv/build

# Create a toolchain file with absolute path
cat > custom_toolchain.cmake << EOF
# Custom toolchain file to exclude Conda paths

# Set system compilers
set(CMAKE_C_COMPILER "/usr/bin/gcc")
set(CMAKE_CXX_COMPILER "/usr/bin/g++")

# Set system root directories
set(CMAKE_FIND_ROOT_PATH "/usr")
set(CMAKE_FIND_ROOT_PATH_MODE_PROGRAM NEVER)
set(CMAKE_FIND_ROOT_PATH_MODE_LIBRARY ONLY)
set(CMAKE_FIND_ROOT_PATH_MODE_INCLUDE ONLY)
set(CMAKE_FIND_ROOT_PATH_MODE_PACKAGE ONLY)

# Explicitly exclude Conda paths
list(APPEND CMAKE_IGNORE_PATH
    "/workspace/miniconda3"
    "/workspace/miniconda3/envs"
    "/workspace/miniconda3/envs/comfystream"
    "/workspace/miniconda3/envs/comfystream/lib"
)

# Set RPATH settings
set(CMAKE_SKIP_BUILD_RPATH FALSE)
set(CMAKE_BUILD_WITH_INSTALL_RPATH FALSE)
set(CMAKE_INSTALL_RPATH "/usr/local/lib:/usr/lib/x86_64-linux-gnu")
set(PYTHON_LIBRARY "/workspace/miniconda3/envs/comfystream/lib/")
set(CMAKE_INSTALL_RPATH_USE_LINK_PATH TRUE)
EOF

# Set environment variables for OpenCV
echo 'export LD_LIBRARY_PATH=/usr/local/lib:$LD_LIBRARY_PATH' >> ~/.bashrc
source ~/.bashrc

# Build and install OpenCV with CUDA support
cd opencv/build
cmake \
  -D CMAKE_TOOLCHAIN_FILE=../../custom_toolchain.cmake \
  -D CMAKE_BUILD_TYPE=RELEASE \
  -D CMAKE_INSTALL_PREFIX=/usr/local \
  -D WITH_CUDA=ON \
  -D WITH_CUDNN=ON \
  -D WITH_CUBLAS=ON \
  -D WITH_TBB=ON \
  -D OPENCV_DNN_CUDA=ON \
  -D OPENCV_ENABLE_NONFREE=ON \
  -D CUDA_ARCH_LIST="8.0+PTX" \
  -D CUDA_TOOLKIT_ROOT_DIR=/usr/local/cuda-${CUDA_VERSION} \
  -D OPENCV_EXTRA_MODULES_PATH=../../opencv_contrib/modules \
  -D PYTHON3_EXECUTABLE=/workspace/miniconda3/envs/comfystream/bin/python3.11 \
  -D PYTHON_INCLUDE_DIR=/workspace/miniconda3/envs/comfystream/include/python3.11 \
  -D PYTHON_LIBRARY=/workspace/miniconda3/envs/comfystream/lib/libpython3.11.so \
  -D HAVE_opencv_python3=ON \
  -D WITH_NVCUVID=OFF \
  -D WITH_NVCUVENC=OFF \
  ..
make -j$(nproc)
make install
ldconfig

After the compilation, you can verify that OpenCV is installed correctly by running:

python3 -c "import cv2; print(cv2.cuda.getCudaEnabledDeviceCount())"

This should output 1 or higher depending on the number of CUDA-enabled devices in your machine if installation was successful.

Adding the Node

An example upscaling workflow using the Super Resolution node is available here.

Install the StreamPack Nodes

Ensure the StreamPack custom nodes are installed in your ComfyUI setup. Follow the installation instructions for a step-by-step guide.

Open the ComfyUI Graph Editor

Right-click on an empty area of the canvas and choose Add Node.

Find the Super Resolution Nodes

Search for SuperResolution under the StreamPack/ category.

Place it in the Workflow

There are two nodes under SuperResolution: SR Model Loader and SR Upscale. You need both to upscale, so place them on the canvas.

Connect Inputs and Configure Parameters

In SR Model Loader, you’ll see widgets to select the upscaling model and scale factor.
Connect the output of SR Model Loader to the input of SR Upscale.
In the SR Upscale node, toggle the use CUDA widget to true to enable CUDA acceleration.
Connect an image to the input of SR Upscale and a preview node to the output.

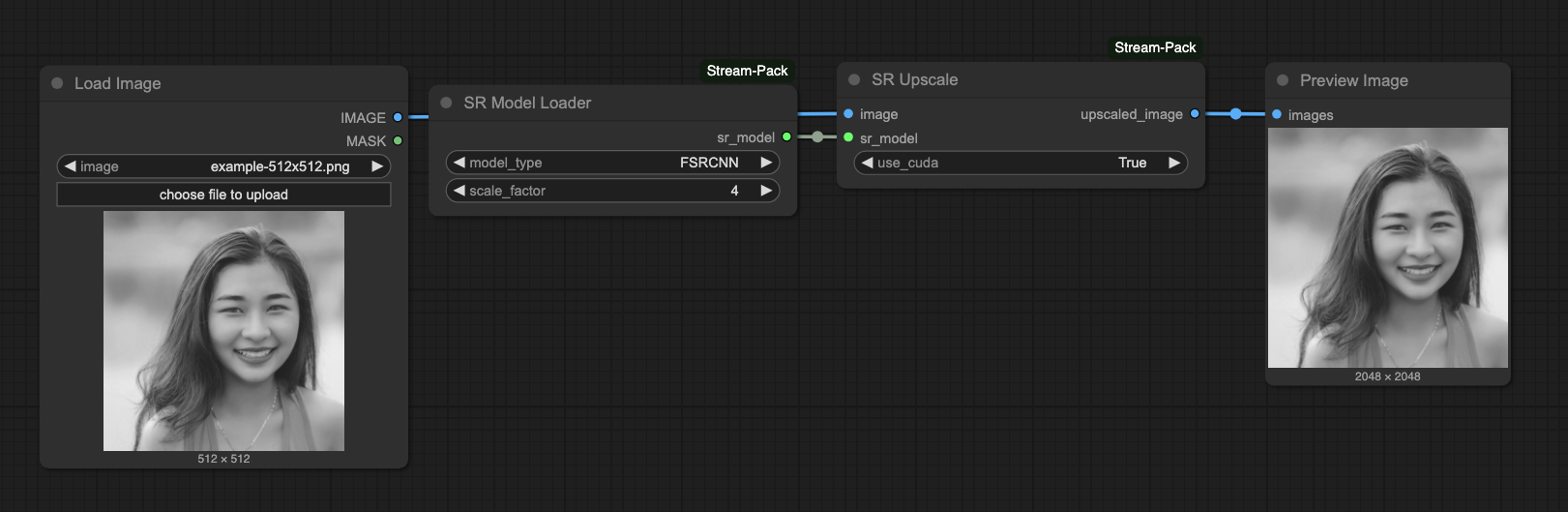

Minimal Super Resolution Node Implementation

Parameters

The following parameters control how the Super Resolution models behave:

Tips for Tuning and Best Practices

SR Model Loader Node

model_type

string

Model Type: Select the upscaling model to use. The quality and performance vary by model. Models are downloaded and loaded automatically when selected in the canvas. Below is a basic comparison of the models.

Model	Architecture	Features	Best For	Speed	Quality
FSRCNN-small	Lightweight CNN	Fast, minimal memory use	Real-time processing, mobile	★★★★★	★★
FSRCNN	CNN with larger features	Good balance of speed/quality	General purpose	★★★★	★★★
ESPCN	Sub-pixel convolutions	Efficient upscaling at end	Text/line drawings	★★★★	★★★
VDSR	Very deep CNN	Better edge reconstruction	Detailed images with edges	★★★	★★★★
LapSRN	Laplacian pyramid	Progressive upscaling	Sharp edges, details	★★★	★★★★
EDSR	Deep residual network	Most parameters, best quality	Maximum detail	★★	★★★★★

scale_factor

integer

Scale Factor: Select the upscaling factor. The image will be upscaled by this factor. For example, if the input image is 512x512, the output will be 1024x1024 with a scale factor of 2.

SR Upscale Node

use_CUDA

boolean

Use CUDA: Toggle to true to enable CUDA acceleration for upscaling.

Strengths and Limitations

While the Super Resolution node offers significant performance benefits compared to other upscaling methods, it also introduces a few trade-offs depending on your use case.

Strengths

Wide suite of supported models – Option to choose from multiple models (FSRCNN, ESPCN, LapSRN, EDSR) with different quality/speed tradeoffs.
Modular Design – Once a model is loaded, it can be reused across multiple upscaling operations.
Fast performance via CUDA – Configurable CUDA acceleration for optimal performance.
Multiple Scale Factors – Support for 2x, 3x, and 4x upscaling.

Limitations

Setup Complexity – The node requires a version of OpenCV with CUDA support, which may require additional setup, since the CUDA is only available for NVIDIA GPUs, it will not work on other GPUs.
